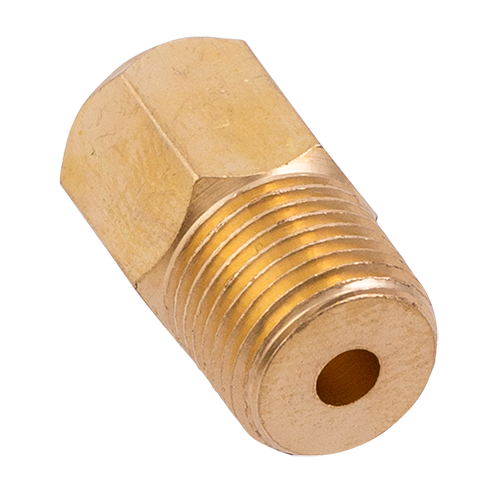

Straight Adapter



Model Bore Ød L T T1 H Weight(g)
PD0401 Ø4 3 18 M8x1.0 PT1/8 10 8
PD0402 Ø4 3.5 18 M8x1.0 PT1/4 14 17
PD0406-1 Ø4 2.5 18 M8x1.0 Ｍ6x0.75 10 6
PD0406 Ø4 2.5 18 M8x1.0 Ｍ6x1.0 10 6
PD0408 Ø4 3 18 M8x1.0 Ｍ8x1.0 10 6
PD0601 Ø6 4 18 M10x1.0 PT1/8 12 8
PD0602 Ø6 5 18 M10x1.0 PT1/4 14 14
PD0608 Ø6 3 18 M10x1.0 Ｍ8x1.0 12 8
PD0801 Ø8 5 26 M14x1.5 PT1/8 17 22
PD0802 Ø8 6 26 M14x1.5 PT1/4 17 26
PD01001 Ø10 5 28 M16x1.5 PT1/8 19 29
PD1002 Ø10 7 28 M16x1.5 PT1/4 19 33
Reverse-Flow Straight Adapter



Model Bore L T T1 H Weight(g)
PD0401B Ø4 26 M8x1.0 PT1/8 10 11
PD0601B Ø6 26 M10x1.0 PT1/8 12 14
One-Way Straight Adapter



Model Bore L T T1 H Weight(g)
PD0401A Ø4 26 M8x1.0 PT1/8 10 11
PD0601A Ø6 26 M10x1.0 PT1/8 12 14

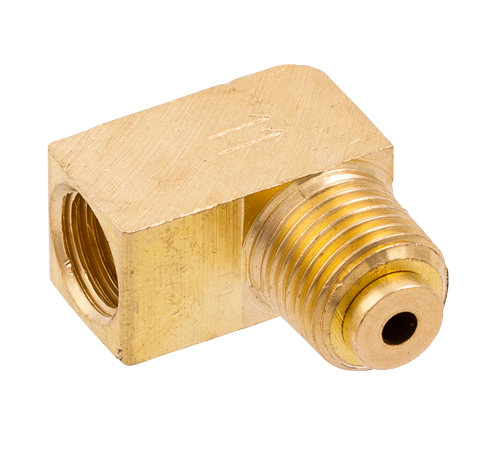

Elbow Adapter



Model Bore Ød L1 L2 T T1 H Weight(g)
PH0401 Ø4 3 18 18 M8x1.0 PT1/8 10 13
PH0402 Ø4 4 20 22 M8x1.0 PT1/4 14 32
PH0406-1 Ø4 2 18 18 M8x1.0 Ｍ6x0.75 10 13
PH0406 Ø4 2 18 18 M8x1.0 Ｍ6x1.0 10 12
PH0408 Ø4 3 18 18 M8x1.0 Ｍ8x1.0 10 13
PH0601 Ø6 4 20 20 M10x1.0 PT1/8 12 20
PH0602 Ø6 4 20 22 M10x1.0 PT1/4 14 29
PH0608 Ø6 3 20 20 M10x1.0 Ｍ8x1.0 12 20
PH0801 Ø8 5 26 29 M14x1.5 PT1/8 17 52
PH0802 Ø8 6 26 29 M14x1.5 PT1/4 17 56
PH1001
(Special Order)		 Ø10 5 29 31 M16x1.5 PT1/8 19 70
PH1002 Ø10 7 29 31 M16x1.5 PT1/4 19 70
Reverse-Flow Elbow Adapter



Model Bore L1 L2 T T1 H Weight(g)
PH0401B Ø4 18 20 M8x1.0 PT1/8 10 14
PH0601B Ø6 20 22 M10x1.0 PT1/8 12 21
One-Way Elbow Adapter



Model Bore L1 L2 T T1 H Weight(g)
PH0401A Ø4 18 20 M8x1.0 PT1/8 10 14
PH0601A Ø6 20 22 M10x1.0 PT1/8 12 21
3-Way T Connector



Model T L1 L2 W Weight(g)
PT01 PS 1/8" 27 21 14 34
PT02 PS 1/4" 31 25 18 17
PT03 PS 3/8" 40 31 21 86
Compression Sleeve



Model Bore Ød ØD L Weight(g)
PB04 Ø4 4.1 6 4.5 0.3
PB06 Ø6 6.1 8 4.5 0.6
PB08 Ø8 8.1 11 7 2
PB10 Ø10 10 13.5 8 3
Compression Bushing



Model Bore Ød L T H Weight(g)
PA04 Ø4 4.1 12 M8x1.0 8 3
PA04T Ø4 4.1 12 5/16-24 8 3
PA06 Ø6 6.1 12.5 M10x1.0 10 4
PA08 Ø8 8.1 14 M14x1.0 14 9
PA10 Ø10 10.1 15 M16x1.0 16 12
Compression Nut



Model Bore Ød D L H Weight(g)
DP04 Ø4 4.1 13 M8x1.0 10 3
Connector Insert



Model A B Weight(g)
PPD04 Ø4 Ø2 -
PPD06 Ø6 Ø4 0.2
Swivel Straight Adapter



Model Bore Ｔ T1 Weight(g)
PC0401 Ø4 M8x1.0 PT 1/8 28
PC0101 - PT 1/8 PT 1/8 28

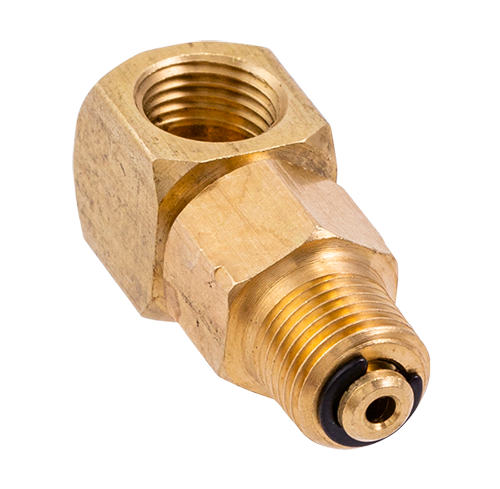

Swivel Elbow Adapter



Model Bore Ｔ T1 Weight(g)
PC0401 Ø4 M8x1.0 PT 1/8 38
PC0601 Ø6 M10x1.0 PT 1/8 38
PC0101 - PT 1/8 PT 1/8 36
Plane Swivel Elbow Adapter



Model Bore T T Weight(g)
PE0101 - PS 1/8 PS 1/8 25
Connector






Model A B Ｔ T1 Weight(g)
PK10404 23 10 M8x1.0 M8x1.0 10
PK10606 25 12 M10x1.0 M10x1.0 15
PK20101 24.5 10 PT 1/8 PT 1/8 9
PK20102 27 14 PT 1/8 PT 1/4 17
PK20202 30 14 PT 1/4 PT 1/4 19
PK20203 30 17 PT 1/4 PT 3/8 26
PK31010 29 17 M10x1.0 M10x1.0 9
2-Way Junction



Model Bore T T1 Weight(g)
PJD0404 Ø4xØ4 M8x1.0 M8x1.0 23
PJD0406 Ø4xØ6 M8x1.0 M8x1.0 22
PJD0606 Ø6xØ6 M10x1.0 M10x1.0 20
T-Junction



Model Bore T L1 L2 Weight(g)
PKD04 Ø4 M8x1.0 28 19.5 15
PKD06 Ø6 M10x1.0 30 22 26
Cross Junction



Model Bore T L Weight(g)
PJD04 Ø4 M8x1.0 28 15
PJD06 Ø6 M10x1.0 30 26
3-Way Junction



Model Bore T Weight(g)
PHD0301 Ø4 M8x1.0 20
4-Way Junction



Model Bore T Weight(g)
PHD0401 Ø4 M8x1.0 25
5-Way Junction



Model Bore T Weight(g)
PHD0501 Ø4 M8x1.0 29
Grease Nozzle




Model Specification Weight(g)
440029 PT1/4 x 45º 15
440026 PT1/8 x 45º 8.5
440027  PT1/8 x 90º 9
440057 M8 x 90º 8
440023 PT1/4 x 180º 12.5
440000 PT1/8 x 180º 8.5
440047 M8 x 180º 4
Plane Elbow Adapter



Model Bore Ød L T T1 H Weight(g)
PI0401 Ø4 2 21 M8x1.0 PT 1/8" 12.7 17
PI0404Z Ø4 2 21 M8x1.0 Z1/8" 12.7 17
PI0408 Ø4 2 21 M8x1.0 M8x1.0 12.7 15
PI0601 Ø6 2 22 M10x1.0 PT 1/8" 14 15
PI0101 - 2.5 21 PS 1/8 PT 1/8" 12.7 15
Straight Adapter For Nylon Pipe

Model Specification Weight(g)
440N03-C1006 PT1/8 x Ø6 16
440N03-C1010 PT1/8 x PE1/8 12
440N03-C1020  PT1/8 x PE1/4 16
440N03-C1025 PT1/8 x PE5/16 18
440N03-C2006 PT1/4 x Ø6 22
440N03-C2010 PT1/4 x Ø10 28
440N03-C2020 PT1/4 x PE1/4 21
440N03-C2025 PT1/4 x PE5/16 25
440N03-C2030 PT1/4 x PE3/8 27.5
440N03-C3020 PT3/8 x PE1/4 27.5
Elbow Adapter For Nylon Pipe

Model Specification Weight(g)
440N06-L102 PT1/8 x PE1/4 16.5
440N06-L1025 PT1/8 x PE5/16 23.5
440N06-L2006  PT1/4 x Ø6 25.5
440N06-L2010 PT1/4 x Ø10 30.5
440N06-L2020 PT1/4 x PE1/4 26
440N06-L2025 PT1/4 x PE5/16 32.5
440N06-L203 PT1/4 x PE3/8 34.5
440N06-L302 PT3/8 x PE1/4 31.5

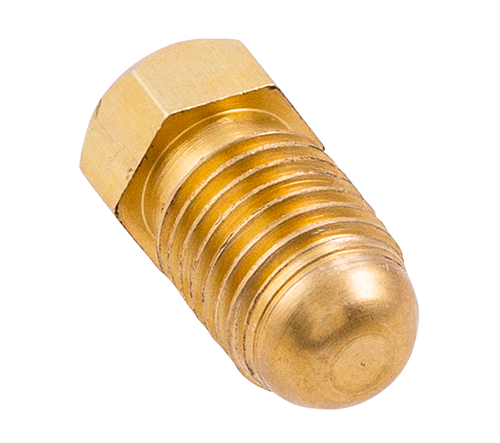

Closure Plug



Model L T H Weight(g)
PG0408 12 M8x1.0 8 4.4
PG0601 14 PT 1/8 10 7.6
Plug



Model L T H Weight(g)
PG04 16 M8x1.0 8 5.4
PG06 17 M10x1.0 10 8.8
Pipe Clip



Model Bore Number of holes A C Weight(g)
PZ1104 Ø4 1 6 5 1.2
PZ1106 Ø6 1 8.5 7 2.6
PZ1108 Ø8 1 10 9 2.2
PZ1110 Ø10 1 12.5 11 3.6
PZ1204 Ø4 2 11 5 1.8
PZ1206 Ø6 2 14.5 7 2.8
PZ1304 Ø4 3 15 5 2.8
Vertical Pressure Gauge



Model Specification (kgf/cm²/Mpa) W L H Weight(g)
327207 15 42 58 24 53
327610 35 (oil charged) 42 58 24 53
Pressure Switch For Oil



Model Working
Pressure
(kgf/cm²)		 Reset
Pressure
(kgf/cm²)		 Max. Operation
Pressure
(kgf/cm²)		 Max.
Voltage		 Max.
Current		 Contact
321660 12-9 8 30 AC 250V 3A NC / NO
Pressure Switch For Grease



Model Working
Pressure
(kgf/cm²)		 Reset
Pressure
(kgf/cm²)		 Max. Operation
Pressure
(kgf/cm²)		 Max.
Voltage		 Max.
Current		 Contact
321700 30 25 100 AC 250V 5A NC / NO
321701 55 45 100 AC 250V 5A NC / NO
Float Switch
Model Apply For Contact
321002-009 SST-series (NC)
Inlet Filter
Model Apply For Note
153013 2L Oil Tank 40μ
153000 3L - 8L Oil Tank

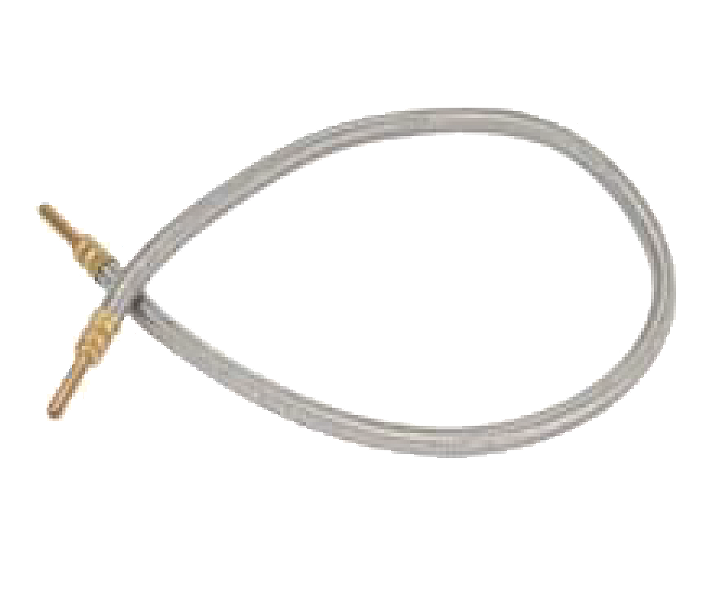

Low pressure flexible hose


Model Pipe Diameter Pressure range(kgf/cm²)
PST04 Ø4 0~40
PST06 Ø6 0~40
Middle pressure flexible hose
Model Pipe Diameter Pressure range(kgf/cm²)
PSM04 Ø4 0~150
PSM06 Ø6 0~150
Steel Wire Shield Tube


Model Pipe Diameter Max. Operation Pressure range(kgf/cm²)
P-SF04 Ø4 0~100
P-SF06 Ø6 0~100

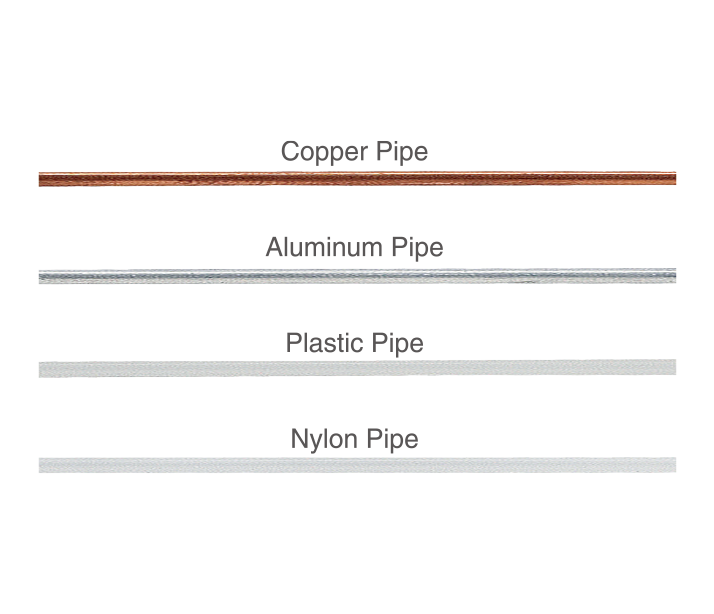

Pipe

Description Model Specification
Copper Pipe P-CP Bore Ø4 Ø6
Minimum Bending Radius R20 R30
Aluminum Pipe P-AP Bore Ø4 Ø6
Minimum Bending Radius R20 R40
Plastic Pipe P-PP Bore Ø4 Ø6 Ø8
Minimum Bending Radius R20 R40 R40
Nylon Pipe P-NP Bore Ø4 Ø6 Ø8
Minimum Bending Radius R20 R30 R50
Nylon Pipe Spring
Description Model Specification Lengh
Nylon Pipe Spring NPS Ø4 、 Ø6 1800±5mm
Nut for Middle pressure flexible hose / Connector for Middle pressure flexible hose
Model Qd
PSG04 Ø4
PSG06 Ø6
Oil Filter



Model T L Filter Precision(µm) Weight(g)
PF25806 PT1/4" 60 196 125
PF25808 PT1/4" 80 196 140
PF25810 PT1/4" 100 196 150
PF35806 PT3/8" 60 196 120
PF35808 PT3/8" 80 196 130
PF35810 PT3/8" 100 196 135
Oil Auto Cleaner Filter



Model Inlet/Outlet Thread Filter Precision (Mesh) Max. Output Volume (L/min) Max.Pressure (kgf/cm²)
PR-C1 PS1/4 x PS1/4 60 20L/min 15kg/cm²
PR-C2 PS3/8 x PS3/8 60 30L/min
PR-C3 PS1/2 x PS1/2 60 30L/min
Fl Oil Filter



Model Max. Pressure
(kgf/cm²)		 Max. Output Volume
(L/min)		 Filter Precision
(µm)		 INxUOT Weight(g)
FL-010025 25 2.5 10 PS1/8 x PS1/8
PS1/4 x PS1/4		 300
FL-025030 25 3 25 300
FL-125031 25 3.5 125 300
Double-Sided Oil Filter




Model IN x OUT Filter Precision(µm) Weight(g)
PR0202 PS1/4 * PS1/4 196 1000
PR0303 PS3/8 * PS3/8 496
Grease Filter
Model Filter Precision (μm) Rated Operation Pressure (Mpa) IN x OUT A Weight(g)
FL-H2 20403 110-120 10 Rp 1/8 40-45 332
Rp 1/4 40-45 332
Plastic Oil Tank






Model Tank Capacity W L H
156001-SE 2L 112 162 145
156002-SE 3L 131 195 163
156092-SE 4L 141 230 163
Aluminum Oil Tank



Model Tank Capacity W L H
156145-001-SE 4L 141 230 163
Metal Oil Tank




Model Tank Capacity W L H
156016-SE 6L 212 328 170
156013-SE 8L 227 357 188
GE Grease Cartridge

Model

Capacity (c.c.)

NLGI Grade

Thickener

Base Oil

GE-10-04

400

No.0

Lithium Soap

Mineral

GE-10-07

700

No.0

Lithium Soap

GE-20-07

700

No.00

Lithium Soap

GE-30-07-00

700

No.000

Urea Compound
Standard Package : 1pcs/Box
Different from most of oil lubricators with reservoir, the grease is available in cartridges so it is fully protected against external contaminants better than refilling with oil, resulting in a significant reduction in lubrication system problems.


Features:

  1. Convenient and quick change to reduce maintenance costs and machine downtime.
  2. Save time for filling grease to provide a cleaner and healthier factory environment.
  3. Environment Friendly- Reduce the chance of grease pollution on the floor.
  4. Better storage for safety and purchase management for demand.


Application:

  1. YGL-T series manual lubricator can be loaded with 400 c.c. grease cartridge at NLGI grade No.0
  2. SSG-D series electric lubricator can be loaded with 700 c.c. grease cartridge at NLGI grade No.0/00/000.


Remark:

  1. Grease permissible range from NLGI grade No.000 to No.2 at ambient temperature 40℃.
  2. Output volume & max. operating pressure based on NLGI grade No.0 of grease.
